| Place of Origin | shandong |
| Brand Name | ZHONGMEI |
| Certification | CE，EPA，ISO |
| Model Number | 85 Type Wheel Excavator |
Road Crushing Wheeled Hydraulic Excavator Construction Equipment Wheel Wood Grabber Digger
Welcome to ZHONGMEI ! ☺
We specialize in manufacturing superior wheeled excavators to bring you peace of mind in construction equipment.We understand the importance of having reliable and efficient machinery that can tackle any task with ease.
With our cutting-edge technology and unwavering commitment to quality, we guarantee a powerful and versatile lineup of wheeled excavators that will exceed your expectations.
Introduction of Road Crushing Wheeled Hydraulic Excavator Construction Equipment Wheel Wood Grabber Digger
Main control valve - The load-sensing main control valve of the famous Korean brand is adopted, which is matched with the hydraulic system, and the operation is smooth and soft;
Main pump - adopts the advanced variable displacement plunger pump imported from South Korea, which can adjust the fuel supply according to the change of system load at any time to reduce fuel consumption;
Oil Cylinders - All use special oil cylinders for construction machinery, American Parker seals, with buffers, extended service life;
Hoist - The excavator equipped with a hoist is even more powerful, and the length of the dragging distance can reach 200 meters, saving labor;
Engine - The national three standard YD4CZ7C360KW/2200R EFI engine is selected to ensure power and save fuel consumption. Yuchai 4FA65-T30148KW or Yanmar 4TNV98-SFN can be replaced at any time as needed.
Parameters of Road Crushing Wheeled Hydraulic Excavator Construction Equipment Wheel Wood Grabber Digger
| Basic parameters of the whole machine | Total weight | 7300KG |
| shipping length | 6346(mm) | |
| Total height during transportation | 2800(mm) | |
| Transport width | 2200(mm) | |
| Tire center distance | 2400(mm) | |
| Counterweight ground clearance | 1035(mm) | |
| umber of tires | 8-825 | |
| Boom length | 3560(mm) | |
| Stick length | 1900(mm) | |
| Working Range | Max.Digging Height | 6550(mm) |
| Max.Dumping Height | 5100(mm) | |
| Max.Digging Depth | 3380(mm) | |
| Max.Digging radius | 6590(mm) | |
| Maximum lifting height of earth shovel | 300(mm) | |
| Bulldozer maximum digging depth | 100(mm) | |
| Dynamical system | Model | Yuchai |
| Power | 55KW | |
| Cooling method | Water cooled turbocharging | |
| Hydraulic System | Operating Pressure | 22mpa |
| Main pump | Variable plunger | |
| hydraulic valve | Korea | |
| Shape | Load Sensing System | |
| Performance Parameter | Bucket Capacity(SAE) | 0.36m³ |
| Climbing ability | 30° | |
| Maximum digging force | 8200N | |
| Travel speed | 35KM/h | |
| Unit swing speed | 9-11r/min | |
| Hydraulic oil capacity | 90L | |
| Hydraulic tank capacity | 120L | |
| Parking brake | Air break | |
| Service brake | Kill | |
| Stabilizers | Legs / optional |

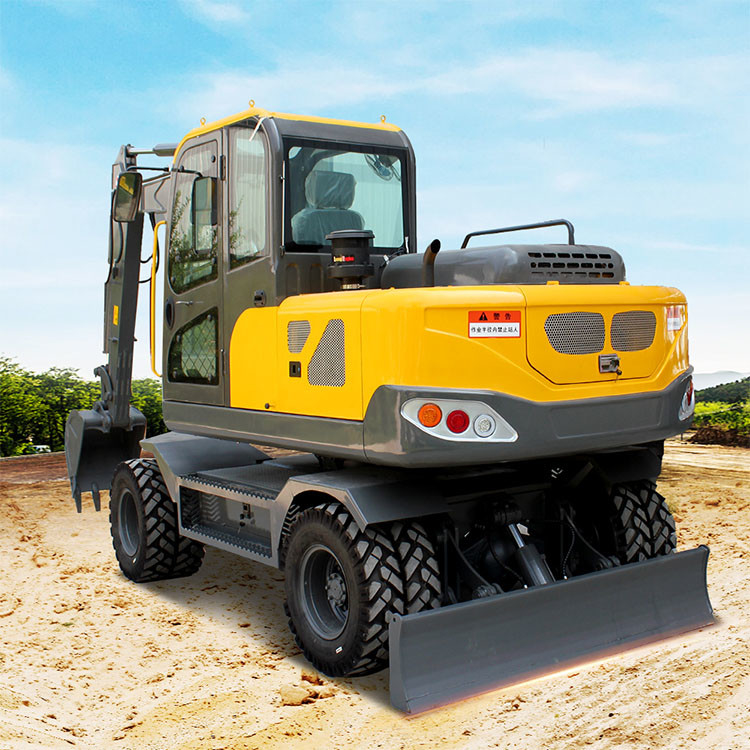

Photos of Road Crushing Wheeled Hydraulic Excavator Construction Equipment Wheel Wood Grabber Digger
Trust in our expertise and let us empower you to achieve extraordinary results in your construction endeavors.
