3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper
  • 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper
  • 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper
  • 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper
  • 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper
  • 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper
  • 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper
  • 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper
3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper

3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper

Place of Origin shandong
Brand Name ZHONGMEI
Certification CE
Model Number 3 Ton
Product Details
Product Name::
3 T Crawler Transport Truck
Keywords::
Crawler Transport Truck
Max. Flat Road Loading::
3T Crawler Dumper
Gear::
Six Forward And Two Backward
Crawler Model(mm)::
350*90*56 Crawler Dumper
Standing Slope Angle::
35° Crawler Dumper
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
* Wooden box with Standard Export Packing * Film plastic and wooden crate with manufacturer logo outsides. * All of the productions are inspected carefully by QC before delivery.
Delivery Time
5 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
Quantity(sets) 1 - 1000 5 days
Product Description

3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 03ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 1



Introduction of 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper



The crawler dump truck features a robust chassis and a spacious dump bed mounted on top. The dump bed is hydraulically operated, allowing for efficient and controlled unloading of materials. It can tilt at various angles to release the load, making it suitable for dumping on uneven ground or into elevated containers.



The tracks on a crawler dump truck are the key to its off-road capabilities. These tracks, made of durable rubber or metal, provide superior traction and flotation, allowing the truck to navigate through soft soil, mud, sand, and other challenging surfaces. The tracks distribute the weight of the truck evenly, minimizing ground pressure and reducing the risk of getting stuck.



Parameters of 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper


L*W*H(mm)
3300*1600*2100
Startup Method
Electric Start
Container Size
2200*1500*600
Driving Method
Mechanical Drive
Max. flat Road Loading
3T
Track Material
Engineering Steel Wire Rubber Track
Engine
Horizontal Bar Full Diesel Water Cooling (22hp) Power: 16.18kw
Gear
Six Forward And Two Backward
Whole Vehicle Weight(T)
1.5
Grounding Length
1680
Crawler Model(mm)
350*90*56
Ground Clearance(cm)
67
Transmission Material Model
Solid Power Nodular Cast Iron21#
Standing Slope Angle
35°
Max. Speed
15km/h
Number Of Bottom Steel Wheels
5 Large + 2 Small
Min. Speed
4.5km/h
Self-unloading Function
Hydraulic Self Unloading
Chassis Width(m)
1.6
Packing Dimensions
14m³



L*W*H(mm)
3500*1600*2100
Startup Method
Electric Start
Container Size
2300*1500*600
Driving Method
Mechanical Drive
Max. flat Road Loading
4T
Track Material
Engineering Steel Wire Rubber Track
Engine
Weichai Huajie 490 Power: 42kw
Gear
Six Forward And Two Backward
Whole Vehicle Weight(T)
1.6
Grounding Length
1780
Crawler Model(mm)
3200*900*560
Ground Clearance(cm)
67
Transmission Material Model
Solid Power Nodular Cast Iron21#
Standing Slope Angle
35°
Max. Speed
25km/h
Number Of Bottom Steel Wheels
6 Large + 2 Small
Min. Speed
4.5km/h
Self-unloading Function
Hydraulic Self Unloading
Chassis Width(m)
1.6
Packing Dimensions
15m³

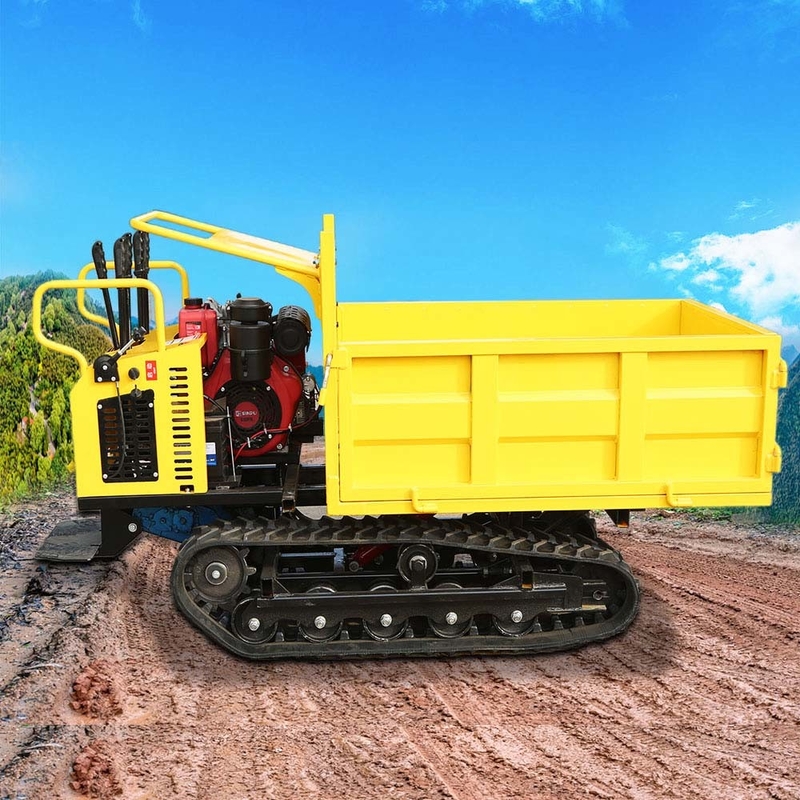

Photos of 3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper

3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 23ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 33ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 43ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 53ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 6

3ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 73ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 83ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 93ton Large Capacity Transport Vehicle 3t Heavy Rubber Crawler Dumper 10
