Super Large Excavator
>
|
| Place of Origin | shandong |
| Brand Name | ZHONGMEI |
| Certification | CE，EPA，ISO |
| Model Number | 85 Type Wheel Excavator |
Introduction of Earthwork Projects Hydraulic Shovel Digger Wheeled Construction Equipment Excavator
Ultra large excavators have powerful excavation capabilities and efficient operational performance. Its excavation force can reach tens to hundreds of tons, making it easy to excavate various hard soil, rocks, and ores. At the same time, its operation speed is fast, and it can excavate tens to hundreds of cubic meters of soil per minute. In addition, ultra large excavators also have a wide range of operations, which can be applied in various fields such as earthwork, mining, construction, and road restoration.
Ultra large excavators play an important role in earthwork and mining. It can quickly and efficiently complete large-scale earthworks and mining tasks, improve work efficiency, and reduce labor costs. At the same time, it can also reduce environmental damage, reduce construction risks, and improve safety.
In short, the ultra large excavator is a heavy mechanical equipment with strong excavation capacity and efficient operation performance, widely used in fields such as earthwork and mining. Its emergence has greatly improved work efficiency and reduced labor costs, which is of great significance for promoting engineering construction and economic development.
Parameters of Earthwork Projects Hydraulic Shovel Digger Wheeled Construction Equipment Excavator
| Basic parameters of the whole machine | Total weight | 7300KG |
| shipping length | 6346(mm) | |
| Total height during transportation | 2800(mm) | |
| Transport width | 2200(mm) | |
| Tire center distance | 2400(mm) | |
| Counterweight ground clearance | 1035(mm) | |
| umber of tires | 8-825 | |
| Boom length | 3560(mm) | |
| Stick length | 1900(mm) | |
| Working Range | Max.Digging Height | 6550(mm) |
| Max.Dumping Height | 5100(mm) | |
| Max.Digging Depth | 3380(mm) | |
| Max.Digging radius | 6590(mm) | |
| Maximum lifting height of earth shovel | 300(mm) | |
| Bulldozer maximum digging depth | 100(mm) | |
| Dynamical system | Model | Yuchai |
| Power | 55KW | |
| Cooling method | Water cooled turbocharging | |
| Hydraulic System | Operating Pressure | 22mpa |
| Main pump | Variable plunger | |
| hydraulic valve | Korea | |
| Shape | Load Sensing System | |
| Performance Parameter | Bucket Capacity(SAE) | 0.36m³ |
| Climbing ability | 30° | |
| Maximum digging force | 8200N | |
| Travel speed | 35KM/h | |
| Unit swing speed | 9-11r/min | |
| Hydraulic oil capacity | 90L | |
| Hydraulic tank capacity | 120L | |
| Parking brake | Air break | |
| Service brake | Kill | |
| Stabilizers | Legs / optional |

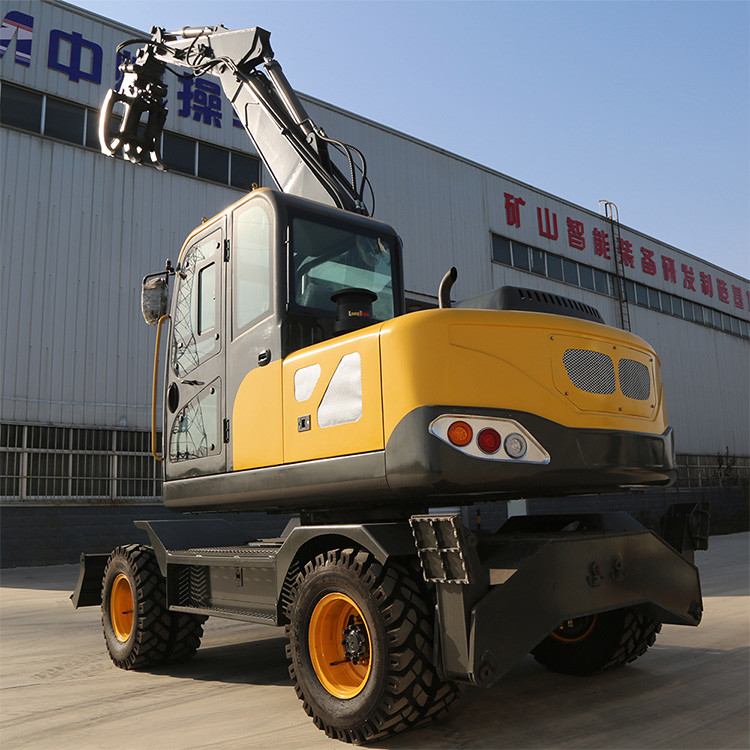

Photos of Earthwork Projects Hydraulic Shovel Digger Wheeled Construction Equipment Excavator
Why Choose China Coal Group?
Unparalleled Expertise: With 20 years of industry experience, we have established ourselves as industry leaders in manufacturing wheeled excavators. Our dedicated team of engineers and technicians continuously push boundaries to develop cutting-edge solutions that cater to the evolving needs of the construction sector.
Customer-Centric Approach: At China Coal Group, we prioritize customer satisfaction above all else. We work closely with our clients, understanding their specific requirements, and customizing our wheeled excavators to ensure optimal performance and maximum efficiency.
Comprehensive Support: Our commitment extends beyond the sale of our wheeled excavators. We provide comprehensive after-sales support, including training programs, maintenance services, and readily available spare parts, ensuring our customers experience seamless operations and peace of mind.
Global Reach: We serve a wide network of clients across the globe, cementing our reputation as a trusted manufacturer of wheeled excavators. With our extensive distribution channels and strategic partnerships, we ensure timely delivery and exceptional customer service regardless of your location.
