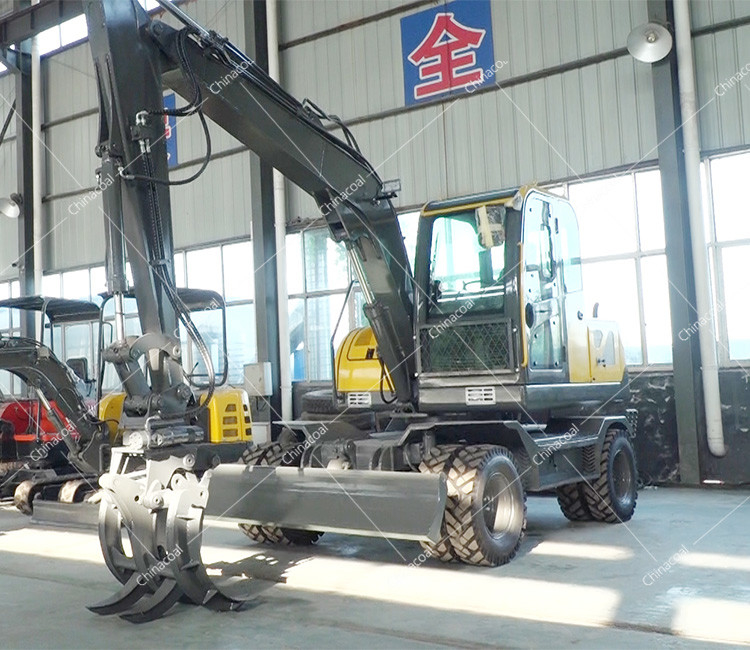

Heavy Duty Super Large Excavator

Place of Origin shandong
Brand Name ZHONGMEI
Certification CE,EPA,ISO
Model Number 85 Type Wheel Excavator
Product Details
Name:
Road Building Equipment
Total Weight:
Large Excavator 7300KG
Shipping Length:
Excavator 6346(mm)
Total Height During Transportation:
Wheel Excavator 2800(mm)
Transport Width:
2200(mm)
Tire Center Distance:
2400(mm)
Counterweight Ground Clearance:
1035(mm)
Boom Length:
3560(mm)
Payment & Shipping Terms
Minimum Order Quantity
1set
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Road Building Equipment Wheel Digger Construction Machine Wheel Drive ZHONGMEI Excavator



Welcome to ZHONGMEI ! ☺

Heavy Duty Super Large Excavator 0

A super large excavator is a heavy-duty construction machine used for digging and moving large amounts of earth, rocks, and other materials. These excavators are typically much larger and more powerful than standard excavators, allowing them to handle more demanding excavation tasks.



With our cutting-edge technology and unwavering commitment to quality, we guarantee a powerful and versatile lineup of wheeled excavators that will exceed your expectations.

Heavy Duty Super Large Excavator 1Heavy Duty Super Large Excavator 2

Heavy Duty Super Large Excavator 3

Introduction of Road Building Equipment Wheel Digger Construction Machine Wheel Drive ZHONGMEI Excavator

Super large excavators are significantly larger than standard excavators, with an average weight ranging from 80 to 200 tons. They can reach heights of up to 30 meters and have a maximum digging depth of around 10 to 20 meters.


These excavators are equipped with powerful engines that generate high horsepower, enabling them to handle heavy loads and tough terrains. The engines are usually diesel-powered to provide the necessary torque and efficiency.


Super large excavators have large bucket capacities, typically ranging from 3 to 12 cubic meters. This allows them to excavate and move large volumes of material in a single scoop.


The reach and arm length of a super large excavator are designed to cover a wide area, allowing it to dig and load materials efficiently. The arm length can extend up to 15 meters or more, providing a greater working range.

Heavy Duty Super Large Excavator 4

Parameters of Road Building Equipment Wheel Digger Construction Machine Wheel Drive ZHONGMEI Excavator

Basic parameters of the whole machine Total weight 7300KG
shipping length 6346(mm)
Total height during transportation 2800(mm)
Transport width 2200(mm)
Tire center distance 2400(mm)
Counterweight ground clearance 1035(mm)
umber of tires 8-825
Boom length 3560(mm)
Stick length 1900(mm)
Working Range Max.Digging Height 6550(mm)
Max.Dumping Height 5100(mm)
Max.Digging Depth 3380(mm)
Max.Digging radius 6590(mm)
Maximum lifting height of earth shovel 300(mm)
Bulldozer maximum digging depth 100(mm)
Dynamical system Model Yuchai
Power 55KW
Cooling method Water cooled turbocharging
Hydraulic System Operating Pressure 22mpa
Main pump Variable plunger
hydraulic valve Korea
Shape Load Sensing System
Performance Parameter Bucket Capacity(SAE) 0.36m³
Climbing ability 30°
Maximum digging force 8200N
Travel speed 35KM/h
Unit swing speed 9-11r/min
Hydraulic oil capacity 90L
Hydraulic tank capacity 120L
Parking brake Air break
Service brake Kill
Stabilizers Legs / optional

Heavy Duty Super Large Excavator 5

Photos of Road Building Equipment Wheel Digger Construction Machine Wheel Drive ZHONGMEI Excavator

Heavy Duty Super Large Excavator 6Heavy Duty Super Large Excavator 7Heavy Duty Super Large Excavator 8

Trust in our expertise and let us empower you to achieve extraordinary results in your construction endeavors.

Heavy Duty Super Large Excavator 9Heavy Duty Super Large Excavator 10Heavy Duty Super Large Excavator 11Heavy Duty Super Large Excavator 12Heavy Duty Super Large Excavator 13Heavy Duty Super Large Excavator 14Heavy Duty Super Large Excavator 15
