ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader

Place of Origin	shandong
Brand Name	ZHONGMEI
Certification	CE
Model Number	LH380S

Product Details

Load And Unload Mode:

Rear Dump Skid Steer Shovel Loader

Type:

Small Loader

Fuel Tank:

25 L Skid Steer Shovel Loader

Hydraulic Tank:

25 L Skid Steer Shovel Loader

Gradeability:

30% Skid Steer Shovel Loader

Another Name:

Small Skid Loader

Tipping Time:

1.5s Skid Steer Shovel Loader

Fall Time:

3.3s Skid Steer Shovel Loader

Payment & Shipping Terms

Minimum Order Quantity

1

Packaging Details

* Wooden box with Standard Export Packing * Film plastic and wooden crate with manufacturer logo outsides. * All of the productions are inspected carefully by QC before delivery.

Delivery Time

5 days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

Quantity(sets) 1 - 1000 5 days

Product Description

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader 2

Introduction of ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader

At the front of the skid steel loader, there is a universal attachment plate, commonly known as a quick coupler or quick attach system. This plate allows for the seamless interchange of a wide range of attachments, such as buckets, forks, grapples, augers, and hydraulic hammers. The ability to quickly switch attachments makes the skid steel loader highly adaptable to different tasks, eliminating the need for multiple machines on the job site.

The operation of a skid steel loader is intuitive and user-friendly. It is controlled using two joystick-like handles or hand/foot controls, which regulate the movement and hydraulic functions of the machine. Operators can easily manipulate the loader's arms, bucket, and auxiliary attachments, providing precise control over the work being performed.

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader 3

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader 4

Parameters of ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader

Performance Parameter
model			LH380S
performance	Rated loading capacity	kg	200
	Bucket capacity	m³	0.15
	Maximum lifting force	kg	375
	Working speed	km/h	0~6
	Rated pressure	Mpa	17
	Lifting time	s	4.3
	fall time	s	3.3
	Tipping time	s	1.5
	Gradeability	%	30
	operating weight	kg	890	950
engine	brand		Bailitong	Kepu
	model		3864	KD2V80
	types		Gasoline engine, V-type dual cylinder	Diesel engine, water-cooled, V-type dual cylinder
	output power		17.1KW(23HP)/3600rpm	14KW(20HP)/3000rpm
	Fuel consumption	L/h	≤6.7	≤3.6
	start mode		Electric start	Electric start
capacity	fuel tank	L	25
	engine oil	L	1.7	3
	hydraulic tank	L	25

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader 5

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader 6

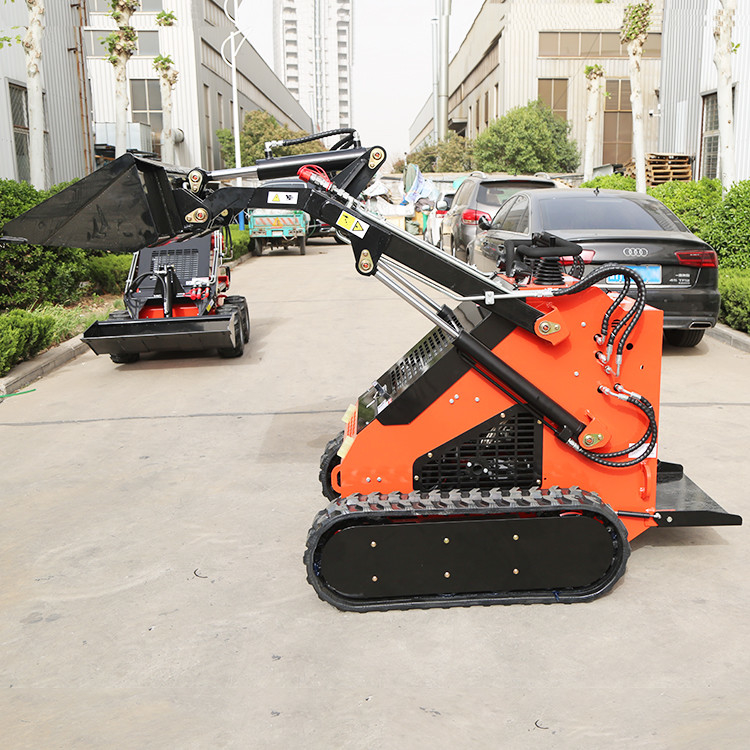

Photos of ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader 7

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader 8

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader 15

ZHONGMEI Mini Telescopic Wheel Loader Compact Structure Mini Skid Steer Shovel Loader 17
