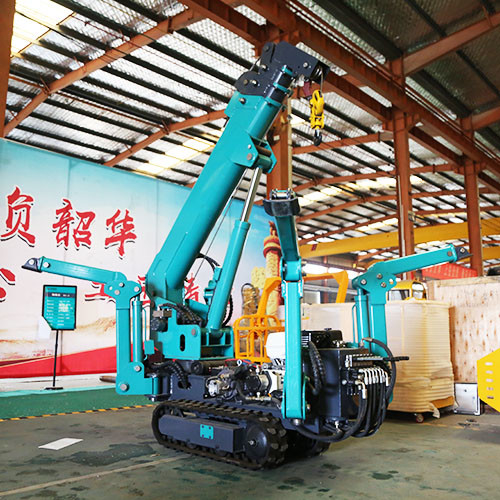

ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments
  • ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments
  • ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments
  • ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments
  • ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments
  • ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments
  • ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments
ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments

ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments

Place of Origin shandong
Brand Name ZHONGMEI
Certification CE
Model Number 1.2t
Product Details
Type/displacement::
Spider Crane 9.6kW
Startup Performance::
-5°C~40°C
The Standard Configuration:
Spider Crane Engine Power
Vehicle Size::
Length 2095*width 600*height 1393
Condition::
New
Max. Lifting Height::
5.8 M
Craftsmanship:
Paint Assembly Process
Key Words::
Crawler Cranes
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
* Wooden box with Standard Export Packing * Film plastic and wooden crate with manufacturer logo outsides. * All of the productions are inspected carefully by QC before delivery.
Delivery Time
5 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
Quantity(sets) 1 - 1000 5 days
Product Description

ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 0

ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 1

ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 2

Introduction of ZHONGMEI New China Supplier Mini Hydraulic Telescope Tracked Crawler Crane With Attachments 1.2t Tracked Spider Crane



A crawler spider crane is a rugged and versatile lifting machine that combines the benefits of a crawler and spider crane. With its tracked undercarriage, it excels in maneuvering over challenging terrains and navigating confined spaces with ease. Equipped with a telescopic boom, it offers impressive lifting capabilities and precise load control. The compact size and exceptional stability make it well-suited for construction sites, industrial projects, and maintenance operations. The crawler spider crane is highly flexible, providing access to hard-to-reach areas and offering efficient and safe lifting solutions in a variety of industries.

The crawler crane offers versatility through its ability to mount different attachments, such as lifting hooks, clamshell buckets, and pile drivers. This flexibility allows the crane to adapt to a wide range of applications, providing efficient solutions for various lifting and construction needs.

In summary, a crawler crane is a robust and versatile lifting machine that combines power, stability, and maneuverability. Its tracked undercarriage, telescopic boom, and strong lifting capacity make it suitable for demanding projects across different industries. With a focus on safety and efficiency, the crawler crane is an invaluable asset for heavy lifting operations.

Product Paramenters

Parameters of ZHONGMEI New China Supplier Mini Hydraulic Telescope Tracked Crawler Crane With Attachments 1.2t Tracked Spider Crane


Specification
1.2t
Maximum Working Radius
5m*0.3t
Maximum Ground Lift
5.8m*0.8t
Winch
Hook up speed
0-8m/min
Wire Rope Specifications
Φ8mm*35m
Telescopic Device
Boom form
4 -section boom , U-shaped high-strength manganese
Boom length/time
1.7 m- 5 m/2 2 sec
Undulating Device
Boom angle/time
0-7 5 °/13sec
Gyratory Device
Rotation angle/speed
0-360° (continuous)/60sec
Outrigger
Outrigger Action Form
Manual unscrewing + hydraulic automatic support (two legs)
Maximum extension (mm)
3800 (L) X 3000 (Rear) , (Front)
Walking Device
way of walking
Hydraulic motor drive, two-speed
Walking speed
0-2.5km/h
Gradeability
20° (36%)
Engine
Producer
Gasoline
Type/displacement
9.6kW
Start method
Electric start
Startup performance
-5°C~40°C
fuel/volume
Gasoline / 8 L
battery capacity
12v 45AH
Fuel consumption
274g/kW-h
Operating System
Type of operation (jib/outrigger), manual travel
Manual operation, manual walking + remote control (optional)
Operating characteristics
Comai hydraulic system (optional)
The Standard Configuration
engine power
Vehicle size
Length 2095*width 600*height 1393
Craftsmanship
Paint assembly process



Details Images

Photos of ZHONGMEI New China Supplier Mini Hydraulic Telescope Tracked Crawler Crane With Attachments 1.2t Tracked Spider Crane

ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 3ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 4

ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 5ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 6

ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 7ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 8ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 9ZHONGMEI China Supplier Mini Hydraulic Telescope 1.2t Tracked Spider Crane With Attachments 10
