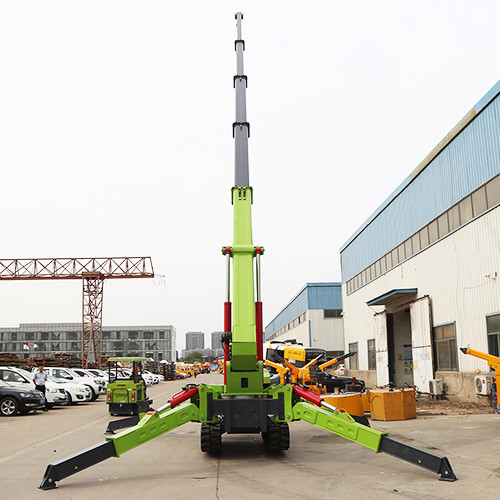

Road Machinery 360 Degree 8t Mini Spider Craner Control Electric Crawler Crane Spider

Place of Origin shandong
Brand Name ZHONGMEI
Certification CE
Model Number 8T
Product Details
Maximum Working Radius:
Mini Spider Craner 16m*0.2t
Maximum Ground Lift:
17m*0.9t
Wire Rope Specifications:
Φ10mm*120m
Boom Form:
5 -stage Boom
Vehicle Size:
Length 4950*width 1560*height 2235
Gradeability:
20° (36%)
Voltage:
AC380V
Key Words::
Crawler Cranes
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
* Wooden box with Standard Export Packing * Film plastic and wooden crate with manufacturer logo outsides. * All of the productions are inspected carefully by QC before delivery.
Delivery Time
5 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
Quantity(sets) 1 - 1000 5 days
Product Description

Road Machinery 360 Degree 8t Mini Spider Craner Control Electric Crawler Crane Spider 0

Road Machinery 360 Degree 8t Mini Spider Craner Control Electric Crawler Crane Spider 1

Road Machinery 360 Degree 8t Mini Spider Craner Control Electric Crawler Crane Spider 2

Introduction of Road Machinery 360 Degree 8t Mini Spider Craner Control Electric Crawler Crane Spider

A crawler crane, also known as a tracked spider crane, is a robust lifting machine equipped with tracks for enhanced stability and mobility. It features a telescopic boom and is designed to lift and move heavy loads with precision. With its versatile maneuverability and ability to operate on various terrains, the crawler crane is commonly used in construction, infrastructure, and industrial projects. Its reliable performance and stability make it an essential tool for demanding lifting operations.

The crawler crane offers versatility through its ability to mount different attachments, such as lifting hooks, clamshell buckets, and pile drivers. This flexibility allows the crane to adapt to a wide range of applications, providing efficient solutions for various lifting and construction needs.

In summary, a crawler crane is a robust and versatile lifting machine that combines power, stability, and maneuverability. Its tracked undercarriage, telescopic boom, and strong lifting capacity make it suitable for demanding projects across different industries. With a focus on safety and efficiency, the crawler crane is an invaluable asset for heavy lifting operations.

Road Machinery 360 Degree 8t Mini Spider Craner Control Electric Crawler Crane Spider 3

Product Paramenters

Road Machinery 360 Degree 8t Mini Spider Craner Control Electric Crawler Crane Spider 4

Parameters of Road Machinery 360 Degree 8t Mini Spider Craner Control Electric Crawler Crane Spider



Maximum working radius
16m*0.2t
Maximum ground lift
17m*0.9t
Winch
Hook up speed
0- 10 m/min
Wire Rope Specifications
Φ10mm*120m
Telescopic device
Boom form
5 -stage boom
Boom length
4.5m-16m
Undulating Device
Boom angle/time
0-7 5 °/13sec
Gyratory Device
Rotation angle/speed
0-360° (continuous)/60sec
Outrigger
Outrigger Action Form
Hydraulic automatic support + manual unscrewing
Maximum extension (mm)
6300 (L) X 4600 (Rear) , (Front)
Walking Device
way of walking
Hydraulic motor drive, two-speed ( rubber track )
Walking speed
0-5.5 km /h
Gradeability
20° (36%)
Motor
Voltage
AC380V
Engine
Producer
Yunnei
Type/displacement
YN27GBZ/2.7L
Start method
Electric start
Startup performance
-5°C~40°C
fuel/volume
Diesel / 45 L
battery capacity
24v 45AH
Fuel consumption
230 g/kW-h
noise level
Rated speed≤81.5dBA (1m)
Operating System
Type of operation (jib/outrigger), manual travel
Manual operation, manual walking + remote control (optional)
The standard configuration
Diesel engine and electric motor (dual power)
Vehicle size
Length 4950*width 1560*height 2235
Craftsmanship
Paint assembly process
