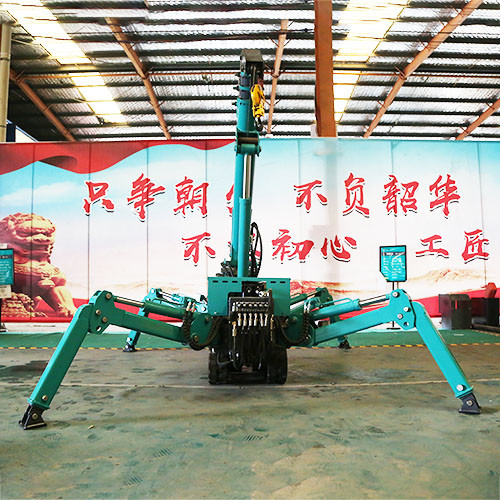

Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane
  • Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane
  • Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane
  • Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane
  • Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane
  • Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane
  • Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane
Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane

Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane

Place of Origin shandong
Brand Name ZHONGMEI
Certification CE
Model Number 1.2t
Product Details
Hook Up Speed::
Crawler Cranes 0-8m/min
Startup Performance::
-5°C~40°C
The Standard Configuration:
Spider Crane Engine Power
Vehicle Size::
Length 2095*width 600*height 1393
Type/displacement::
9.6kW
Max. Lifting Height::
5.8 M
Craftsmanship:
Paint Assembly Process
Key Words::
Crawler Cranes
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
* Wooden box with Standard Export Packing * Film plastic and wooden crate with manufacturer logo outsides. * All of the productions are inspected carefully by QC before delivery.
Delivery Time
5 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
Quantity(sets) 1 - 1000 5 days
Product Description

Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 0

Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 1

Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 2

Introduction of ZHONGMEI New China Supplier Mini Hydraulic Telescope Tracked Crawler Crane With Attachments 1.2t Tracked Spider Crane



The crawler crane features a steel lattice boom that can be extended or retracted to reach different heights and distances. This telescopic boom, combined with its tracked undercarriage, enables the crane to maneuver efficiently on uneven surfaces, making it suitable for construction sites, industrial projects, and infrastructure development.

With its impressive lifting capacity, a crawler crane is capable of hoisting heavy loads to significant heights. The crane's boom and jib configurations allow for precise control and positioning of loads, ensuring safe and efficient lifting operations. It is commonly used for tasks such as loading and unloading heavy materials, erecting steel structures, and performing lifting operations in confined spaces.

Spider cranes have a large lifting capacity and can carry heavy objects for lifting and handling. It is widely used in fields such as road construction, bridge construction, municipal engineering, and petrochemical industry. The spider crane is easy to operate, has high safety and stability, and can improve work efficiency and construction quality.

The spider crane also has flexibility and maneuverability, allowing for operations in narrow spaces. It can be quickly assembled and disassembled, facilitating transportation and relocation. At the same time, the spider crane is also equipped with various safety devices, such as limiters, overload protectors, and anti tipping devices, to ensure safety during work.
Product Paramenters

Parameters of ZHONGMEI New China Supplier Mini Hydraulic Telescope Tracked Crawler Crane With Attachments 1.2t Tracked Spider Crane


Specification
1.2t
Maximum Working Radius
5m*0.3t
Maximum Ground Lift
5.8m*0.8t
Winch
Hook up speed
0-8m/min
Wire Rope Specifications
Φ8mm*35m
Telescopic Device
Boom form
4 -section boom , U-shaped high-strength manganese
Boom length/time
1.7 m- 5 m/2 2 sec
Undulating Device
Boom angle/time
0-7 5 °/13sec
Gyratory Device
Rotation angle/speed
0-360° (continuous)/60sec
Outrigger
Outrigger Action Form
Manual unscrewing + hydraulic automatic support (two legs)
Maximum extension (mm)
3800 (L) X 3000 (Rear) , (Front)
Walking Device
way of walking
Hydraulic motor drive, two-speed
Walking speed
0-2.5km/h
Gradeability
20° (36%)
Engine
Producer
Gasoline
Type/displacement
9.6kW
Start method
Electric start
Startup performance
-5°C~40°C
fuel/volume
Gasoline / 8 L
battery capacity
12v 45AH
Fuel consumption
274g/kW-h
Operating System
Type of operation (jib/outrigger), manual travel
Manual operation, manual walking + remote control (optional)
Operating characteristics
Comai hydraulic system (optional)
The Standard Configuration
engine power
Vehicle size
Length 2095*width 600*height 1393
Craftsmanship
Paint assembly process



Details Images

Photos of ZHONGMEI New China Supplier Mini Hydraulic Telescope Tracked Crawler Crane With Attachments 1.2t Tracked Spider Crane

Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 3Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 4

Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 5Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 6

Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 7Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 8Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 9Construction Equipment 1.2 Ton Crawler Cranes ZHONGMEI Small Telescopic Electric Spider Crane 10
